Cloud Alpha
Smoking Machine VC 10
S-type
for Heat-not-Burn
Tobacco Devices
VITROCELL ® Smoking Machines
VITROCELL ® 흡연 기계는 다양한 기타 연구 작업뿐만 아니라 체외 실험의 요구 사항을 충족하도록 설계되었습니다. 모든 VITROCELL ® 담배 흡연 기계 및 흡연 로봇은 전체 연기, 기체 상태 및 부류 연기를 정확하게 생성하는 데 적합합니다. 모든 기계는 특수 전자 담배 제품 패키지를 통해 전자 담배도 처리할 수 있습니다.
VITROCELL®Smoking Machine VC 1
첨단 기능을 갖춘 재래식 및 전자 담배용 수동 흡연 기계.
수동 흡연 기계 VC 1은 배양 세포, 예를 들어 인간의 체외 실험 요구 사항을 충족하도록 설계되었습니다. 기존 및 전자 담배용.
측면 및 주류 연기 작업에 적합하며 다른 상업용 흡연 기계에 비해 상당한 이점을 제공합니다.
Generation of smoke with the shortest distance to cell cultures
For the success of an experiment with mainstream tobacco smoke it is important that the distance between the smoke generation (cigarette holders) and the VITROCELL® cell cultivation and exposure system is as short as possible in order to avoid aging and to guarantee a smoke composition matching the real-life situation.
Open and flexible system / incorporation of other analytical tools
The VC 1 machine is designed to allow easy access to all tubes, filters and the pumping system. Additional analytical equipment relevant to the experi- ment can be installed without difficulty by the operator.
Freely programmable parameters
The computer system allows highly flexible programming of the smoking process. All parameters of the smoking process like puff duration, puff volume, puff frequency and exhaust duration can be defined according to the needs of the experiment.
Statistics
The data of the smoking process are logged into an Excel® sheet for further processing.
Small dimensions of machine suitable for lab workplace
The VC 1 machine is divided into 2 major components: computer, control box with smoking platform.
All components are easy to clean
In particular the work with unfiltered mainstream smoke demands frequent cleaning of all parts of the machine which are in contact with the smoke. Cleaning must take place after each experiment in order to avoid any influence of residual products on the following experiment. Due to the easy access to all parts the cleaning can be done quickly and efficiently.
Human puff profile capability
This optional feature offers the possibility to feed data of human puff profiles registered by Smoking Puff Analyzers to the machine controls.
Compatibility with other systems in the lab
The VC 1 machine can be integrated with and connected to other lab systems, e. g. analytical systems.
Compliance with ISO 3308:2012
The VC 1 machine meets the requirements of ISO 3308:2012 which assures a compatibility with data generated for quality assurance purposes on other smoking machines.
Compliance with Health Canada / Intense Conditions
The VC 1 machine meets the requirements for 55 ml/30 sec puff frequency requirements if the interchange option is purchased.
Quality
The VC 1 machine is built to the highest standards using reliable and durable components. Precision of the process is ensured by a linear motor drive for the piston.
Service
All VC 1 machines are designed to be very service-friendy and have a secure internet-based remote servicing module
Components Top View
Versatility for all types of test articles
For Conventional Cigarettes
For For draw actuated e-cigarettes Cigarettes
For button actuated e-cigarettes
For Heated Tobacco Products (HTP)
More about VC 1
State of the art controls for highest precision
A choice of modules equipped with 1 Quartz Crystal Microbalance for dose monitoring is also available.
Special Holder System for e-Cigarettes
Secure and tight connection of any puff-actuated device.
Option: Human Puff Profiles
Data generated by a Smoking Puff Analyzer is directly loaded to the controls of the machine.
Option: VITROCELL Vapestarter
Innovative solution for smoking machines: automatic button activation of e-cigarettes
VC 1 Software & Controls
Electrical control box
The control box houses the controls for the stepper motors, sensors and pneumatic valves. The whole process is controlled by Beckhoff software in conjunction with Microsoft Windows 10®. This setup offers extensive possibilities for integration with common Microsoft Office® applications and the exchange of data with Excel®-sheets.
Smoking parameters
The following parameters can be adjusted according to the needs of the experiment: Puff and exhaust duration, Puff frequency, Puff volume, Puff profile, Flow rate, Clearing puff number, Puff duration hold time, Butt length via sensor
VC 1 Smoking Machine Technical Data
-
Dimensions: 605 x 455 x 533 mm (L x W x H)
-
Voltage: 1 x 230 V, 50/60 Hz , 4 A
-
Compressed air: 4 bar (58 psi) min.
-
Remote service module: Included / Internet access mandatory
VITROCELL® Shisha Testing Device
새로운 장치는 물 파이프 담배의 기계 흡연을 위해 설계되었습니다. 그것은 증가된 퍼프 볼륨을 특징으로 하는 유명한 VC 1 스모킹 머신 과 함께 사용됩니다 .
물파이프 담배의 배출물은 화학 분석 또는 체외 노출에 사용될 수 있습니다. 이 장치는 모든 VITROCELL ® 노출 시스템 과 결합할 수 있습니다 . 퍼프 볼륨, 빈도, 퍼프 지속 시간 및 퍼프 프로파일과 같은 모든 매개변수는 ISO에 따라 설정됩니다. 수도관 헤드는 세라믹으로 만들어졌으며 목탄 또는 전기 가열로 작동할 수 있습니다.
Integrated electrical heating device
Useful tools for charcoal operation
Heating via charcoal
The manual smoking machine VC 1 is specifically designed to fulfill the requirements of in vitro experiments and analytical testing. The machine is suitable for conventional and electronic cigarettes as well as for testing of water pipes (shishas).
For higher puff volumes it is possible to equip the machine with different cylinder sizes (200, 300 and 600 ml) without compromising the accuracy of the puff profile. The essential requirement for the “Shisha smoking” application is a significant larger puff volume of up to 600 ml.
The conversion procedure to the higher/smaller cylinder size is possible within less than 10 minutes. The Shisha option is designed for an easy upgrade of an already existing VC 1 smoking machine.
Controller for electrical heating with touchscreen display
Ceramic head with tobacco holder and tamper
VITROCELL® VC 1 Smoking Machine with increased puff volume
Technical Data
-
Dimensions without racks: 565 x 225 x 902 mm (L x W x H)
-
Voltage: 110–120 V, 140 W, 5 A
Features
-
Puff duration: 2.6 s ± 0.1 s
-
Puff volume: 530 ml ± 10 ml
-
Puff frequency: 20 s ± 0.5 s
-
Square puff profile
-
Electrical heating: 280 °C ± 10 °C
-
User-friendly temperature control unit
VITROCELL®Smoking Machine VC 1 S-Type
수동 흡연 기계 VC 1 S-TYPE은 화학적 특성화 및 체외 실험의 요구 사항을 충족합니다.
수동 흡연 기계 VC 1 S-TYPE은 화학적 특성화 및 체외 실험의 요구 사항을 충족하도록 특별히 설계 및 제조되었습니다. 기존 및 전자 담배에 적합합니다.
전체 에어로졸을 연구할 때 최적이며 다른 상업 용 흡연 기계에 비해 상당한 이점을 제공합니다.
Generation of smoke with the shortest distance to cell cultures
For the success of an experiment with mainstream tobacco smoke it is important that the distance between the smoke generation (cigarette holders) and the VITROCELL® cell cultivation and exposure system is as short as possible in order to avoid aging and to guarantee a smoke composition matching the real-life situation.
Open and flexible system / incorporation of other analytical tools
The VC 1 machine is designed to allow easy access to all tubes, filters and the pumping system. Additional analytical equipment relevant to the experi- ment can be installed without difficulty by the operator.
Freely programmable parameters
The computer system allows highly flexible programming of the smoking process. All parameters of the smoking process like puff duration, puff volume, puff frequency and exhaust duration can be defined according to the needs of the experiment.
Statistics
The data of the smoking process are logged into an Excel® sheet for further processing.
Machine dimensions are suitable for constrained lab workplaces
Machine dimensions are suitable for constrained lab workplaces
The VC 1 S-TYPE machine is divided into 4 major components: computer, control box with syringe drive platform, impinger and device rack.
All components are easy to clean
In particular the work with unfiltered whole aerosol demands frequent cleaning of all machine parts which come into contact with aerosol. Cleaning must take place after each experiment to avoid any residual product contamination to subsequent experiments. Easy access to all component parts ensures quick and efficient cleaning.
Human puff profile capability
This optional feature offers the possibility to feed data of human puff profiles registered by Smoking Puff Analyzers to the machine controls.
Compatibility with existing lab systems
The VC 1 S-TYPE machine can be integrated with and connected to other lab systems, e.g. analytical instruments.
Compliance with ISO 3308:2012
The VC 1 S-TYPE machine meets the requirements of ISO 3308:2012 which assures a compatibility with data generated for quality assurance purposes on other smoking machines.
Compliance with Health Canada / Intense Conditions
The VC 1 S-TYPE machine meets the requirements for 55 ml/30 sec puff frequency requirements if the interchange option is purchased.
Quality
The VC 1 S-TYPE machine is built to the highest standards using reliable and durable components. Precision of the process is ensured by a linear motor drive for the piston.
Service
All VC 1S-TYPE machines are designed to be very service-friendy and have a secure internet-based remote servicing module
Software Controls
Input is communicated via PC with monitor or laptop (part of delivery).
Components Top View
Components Top View
-
Max. of 5 ports for e-cigarettes, NGP‘s and conventional cigarettes
-
For chemical analysis and in vitro applications
-
No cross-contamination in product change due to change parts and very easy cleaning
-
Capable of all current regimes ISO, HCI, CRM 81 and up to 300 ml puff volume
-
Small dead volumes
-

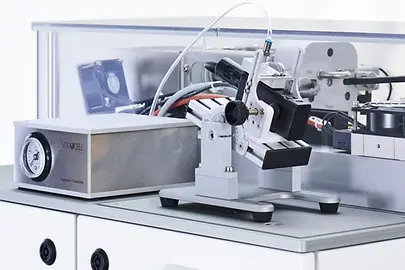

Integrated button actuators

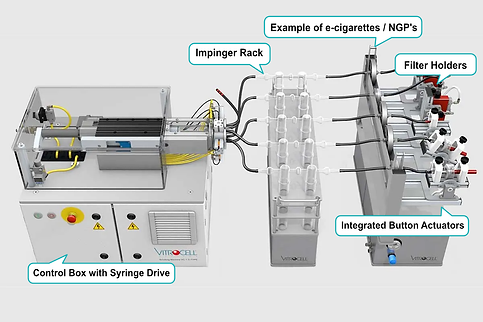

Configuration 1: chemical analysis „e-cigarettes / NGP‘s“

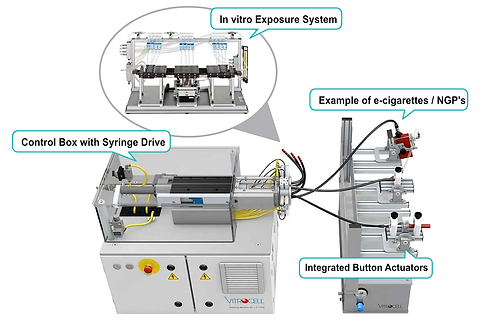

Configuration 2: in vitro „e-cigarettes / NGP‘s“

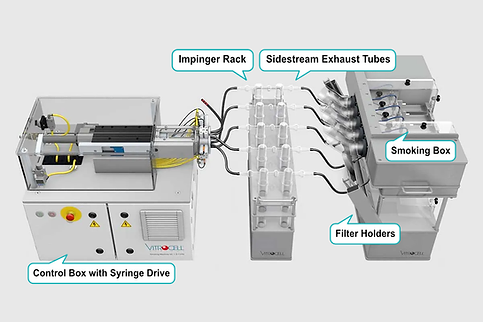

Configuration 3: chemical analysis „Conventional Cigarettes“
Configuration 4: in vitro „Conventional Cigarettes“
More about VC 1 S-TYPE
Option: VITROCELL® FTIR
On-line gas analysis of electronic cigarettes
Powerful linear motor syringe drive with contact-free valve system
-
Proven linear motor drive
-
Unique 6-port valve system for contact-free aerosol flow
-
Software platform from VC 1 / VC 1 S-TYPE / VC 10® / VC 10® S-TYPE
State of the art controls for highest precision
Option: Special Holder System for e-Cigarettes
-
Secure and tight connection of any puff-actuated device.
Option: VITROCELL Vapestarter
-
Innovative solution for smoking machines: automatic button activation of e-cigarettes.
VC 1 S-TYPE Software & Controls
Electrical control box
The control box houses the controls for the stepper motors, sensors and pneumatic valves. The whole process is controlled by Beckhoff software in conjunction with Microsoft Windows 10®. This setup offers extensive possibilities for integration with common Microsoft Office® applications and the exchange of data with Excel®-sheets.
Smoking parameters
The following parameters can be adjusted according to the needs of the experiment: Puff and exhaust duration, Puff frequency, Puff volume, Puff profile, Flow rate, Clearing puff number, Puff duration hold time, Butt length via sensor
VC 1 Smoking Machine Technical Data
-
Dimensions without racks: 605 x 455 x 533 mm (L x W x H)
-
Voltage: 1 x 208-240 V, 50/60 Hz, 4 A
-
Compressed air: 4 bar (58 psi) min.
-
Remote service module: Included / Internet access mandatory
